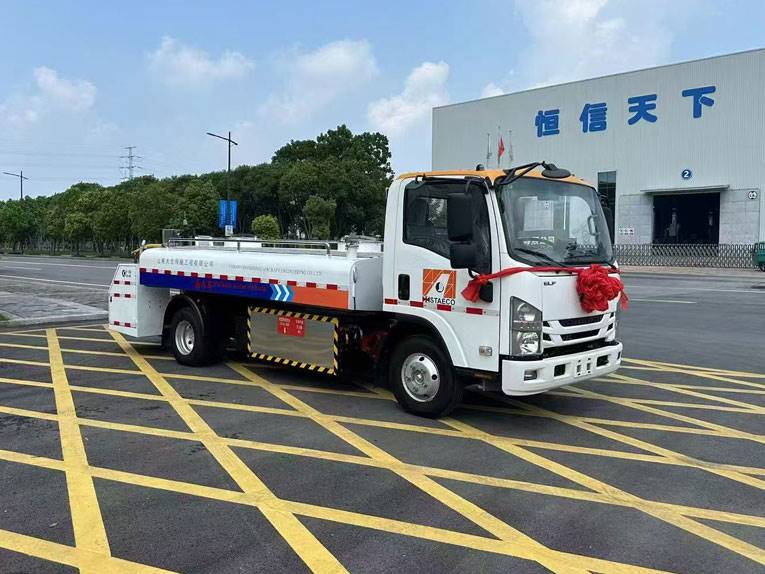

Aircraft Ground Support Equipment Water Service Truck

No.2 Hang Kong Road High-tech zone, Jianhu county,
AS 49610
United States

Condition
New
Category  Transportation > Cars

Description
Product standard of Aircraft Ground Support Equipment Water Service Truck
Reference materials for IATA AHM 905 Civil aircraft apron support Equipment
Basic Requirements for Ground Support Equipment at IATA AHM 910 Airport
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
MH/T 6014-2018 aircraft clear water tanker
AC-137-CA-2015-20R1 General Technical Requirements for Ground Service Equipment of Electric Aircraft
GB/T 18488-2006 Electric Motors and Their Controllers for Electric Vehicles
GB/T 24347-2009 DC/DC Converter for Electric Vehicles
GB/T 18384-2001 Safety Requirements for Electric Vehicles
GB/T 18487-2001 Conductive Charging System for Electric Vehicles
GB/T 20234-2015 Connecting Devices for conductive Charging of Electric Vehicles
GB/T 27930-2011 Communication Protocol between Off-board Conductive Chargers and Battery Management Systems for Electric Vehicles
DB11/Z993-2013 Technical Specification for Remote Service and Management System of Electric Vehicles

The battery adopts CATL lithium iron phosphate battery with a capacity of 106.95Kwh. The vehicle is equipped with four battery boxes, with two on each side placed up and down. It is also equipped with an automatic fire extinguishing device. Each battery box is separately equipped with a maintenance switch. During maintenance or welding, the maintenance switch needs to be unplugged to prevent personal safety and equipment damage. It is also equipped with an automatic fire extinguishing device.

The technical parameters of the Aircraft Ground Support Equipment Water Service Truck configuration seven
Drive motor model: YTD060W23
Model of the drive motor controller: KTZ50X35S
Energy storage device model: L173TB2
Water tank capacity (L) : 5100
Water supply flow rate (L/min) : 235
Water supply pressure (MPa) : 0.25-0.35
Curb weight (kg) : 4150
Overall dimensions (length × width × height) (mm) : 6955×2150×2250
Maximum speed (km/h) : 90
Range (km) : 318
Chassis model: QL1070BEVECHA2Y
Motor pump model: JSTY5060GQSE-1002002
Motor pump controller model: JSTY5060GQSE-1002001
Total energy storage device (kWh) : 106.95 106.95 106.95 96.77 96.77 96.77 96.77
Workbench lifting height (mm) : 390-3100

Jiangsu Tianyi Aviation Industry Co., Ltd.
Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China
Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China
Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919
Mobile: +86 137 6133 5725 (As WeChat)
+86 195 1651 9903
E_ mail: joinsun@jstianyi.com.cn
airport.gse@jstianyi.com.cn
Website: www.tianyi-gse.com
Advertiser
aloo wang
No.2 Hang Kong Road High-tech zone, Jianhu county,
49610
 aloo wang
Established in Feb. 2011, Tianyi is one of the three largest manufacturer specialized in the Civil Airport ground support equipment (GSE) who provides its customers a wide ranger of aviation special vehicles, the product line cover Airport Catering Truck ,Passenger Stairs,Airport ambulift,Water Service Truck,Lavatory service truck,Aircraft Garbage Truck,baggage belt loader,Airport Baggage Tractor,container dolly,Cargo Loader,Air Start Unit
,Aviation Air Conditioning Unit,Ground Power Unit,Aircraft Tractorand so on.


Tianyi was located in Jiangsu LANTIAN Aerospace Industrial Park, and cover the area of 20000 square meters, it is equipped with advanced machining shop, surface coating, overall assembly workshop, hydraulic dust-free workshop, electronics laboratory and so on. In 2011, Tianyi passed the ISO9001-2011 quality management system certification. In 2014, Tianyi was awarded as national high-tech enterprises.

Following the philosophy of “customer as center, market as guide”, continuous introduction and optimization of technical management personnel. At present, we have over 120 employees, boast an annual sales figure that exceed RMB150 million, most of the products also passed the approval of civil aviation administration of China (CAAC).

Adhering to the spirit of “professional, dedicated, pragmatic and efficient”, using technology and innovation never stops, Tianyi will create high quality aviation ground equipment that meet market demand, and become the leader of GSE at home and abroad.
